Watchguard RADIUS settings

Watchguard Authentication Servers
Watchguard Authentication Servers
Watchguard RADIUS settings
Watchguard RADIUS settings
  • Go to Authentication -> Servers

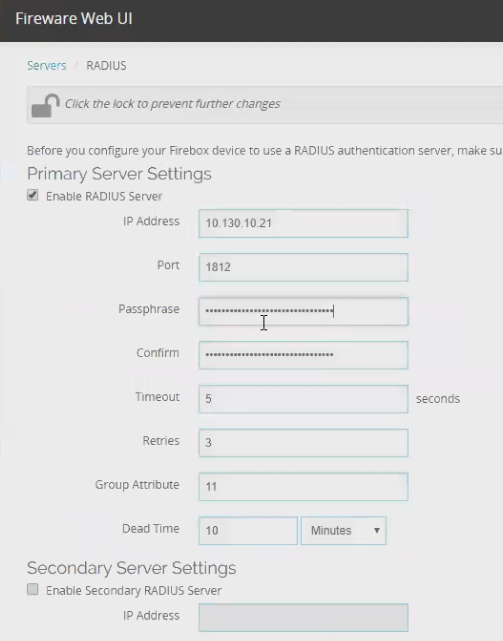

  • Select RADIUS
  • Enter the IP address of your NPS server (member server or DC where NPS is installeD)
  • For "Passphrase" enter a long randomly generated shared secret
  • Set up the settings for second NPS server if you wish to have redundancy
  • Save
Next Steps:
