NOTE: There is a newer version of this article available in the AuthLite 2.5 Documentation. Click here to view it.

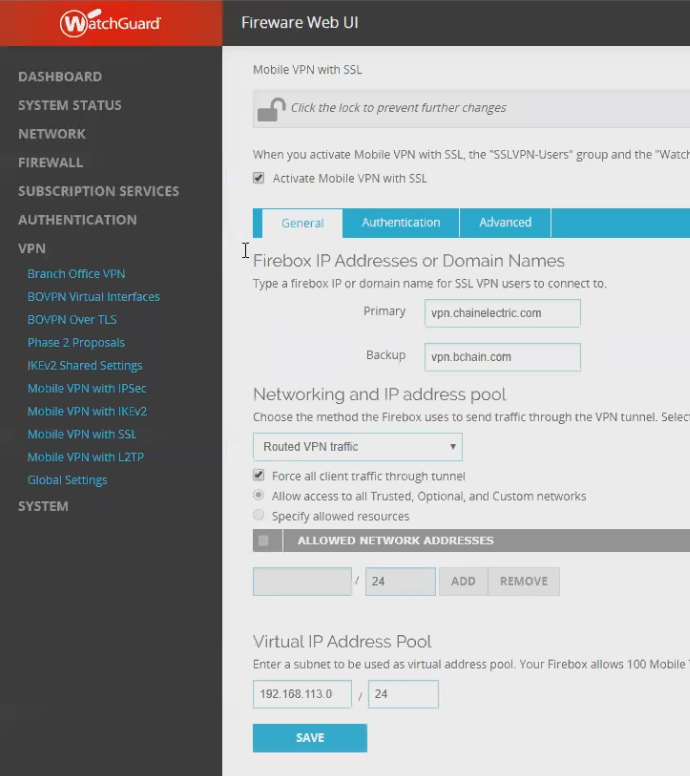

Watchguard VPN Portal settings

Watchguard Mobile VPN with SSL dialog
Watchguard Mobile VPN with SSL dialog

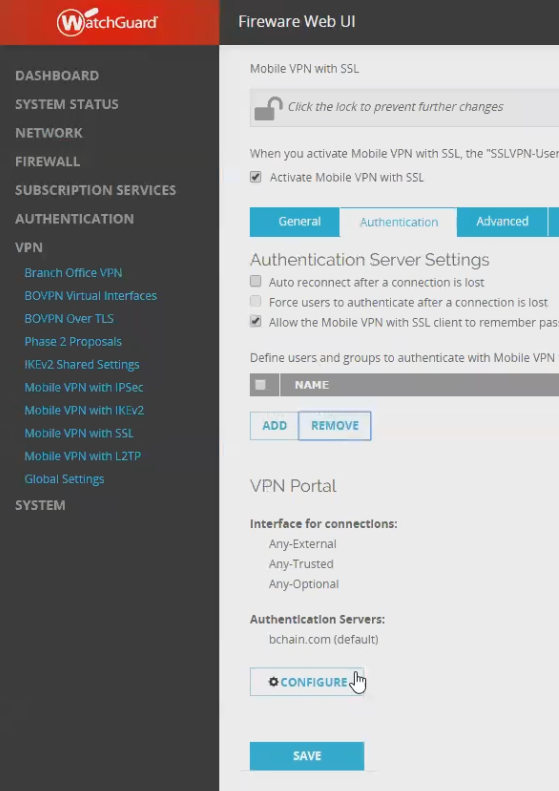

Watchguard configure button
Watchguard configure button

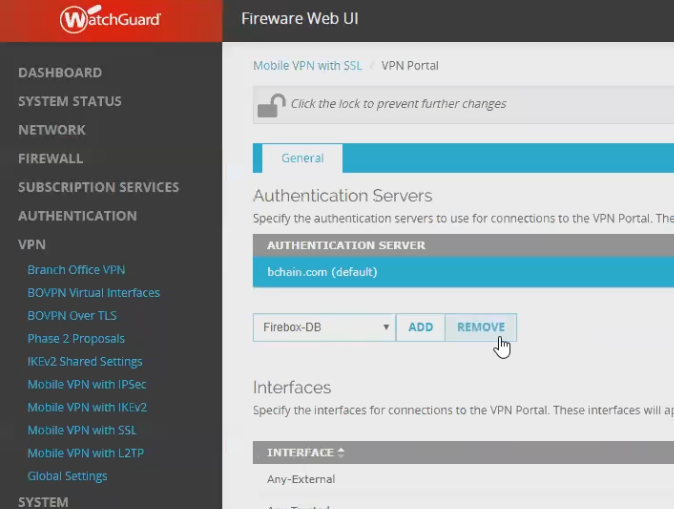

Watchguard remove existing auth
Watchguard remove existing auth

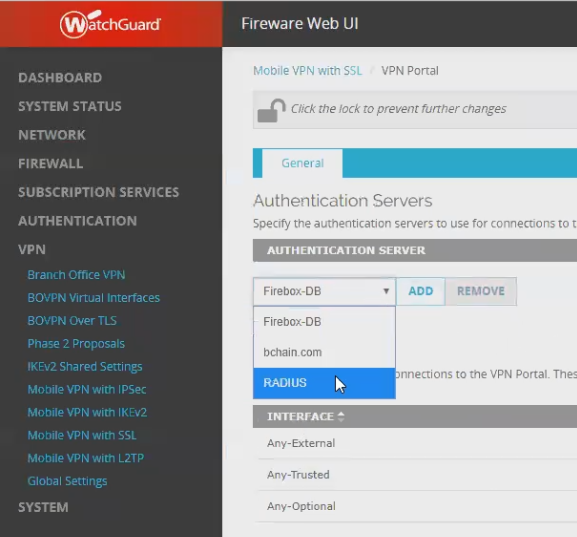

Watchguard select RADIUS
Watchguard select RADIUS

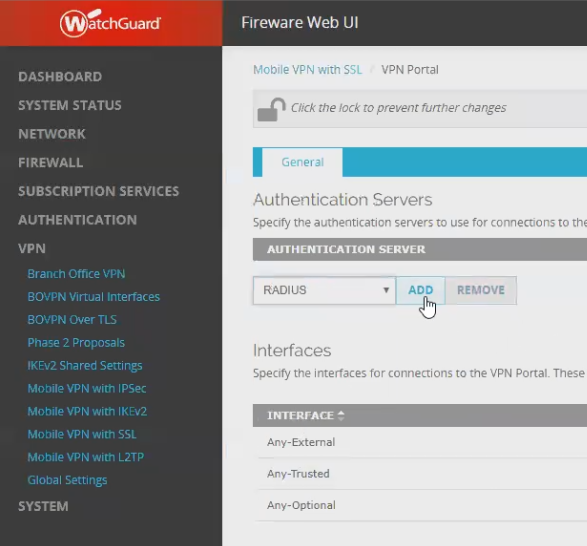

Watchguard add RADIUS
Watchguard add RADIUS

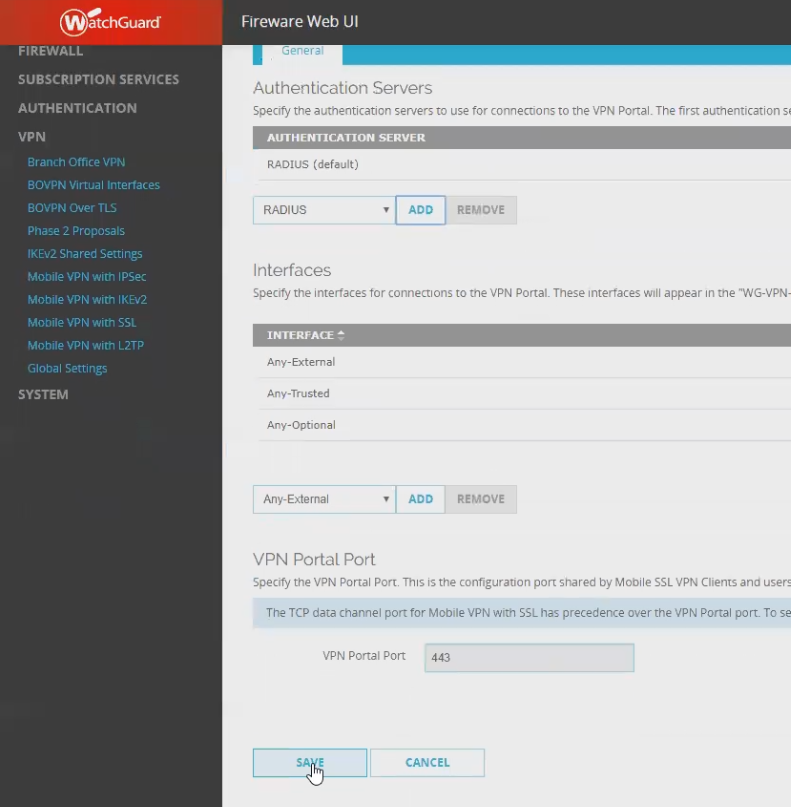

Watchguard Save
Watchguard Save

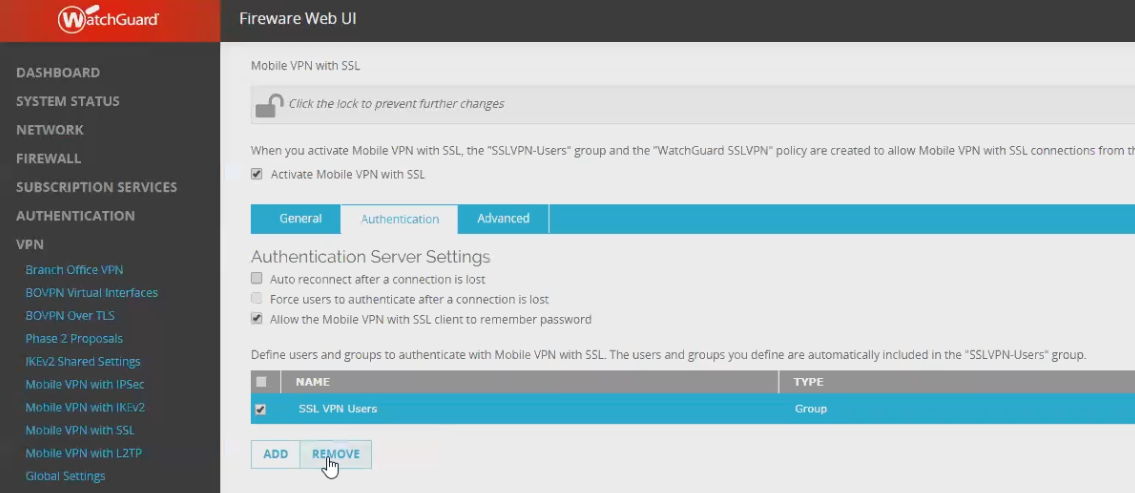

Watchguard Group Remove
Watchguard Group Remove

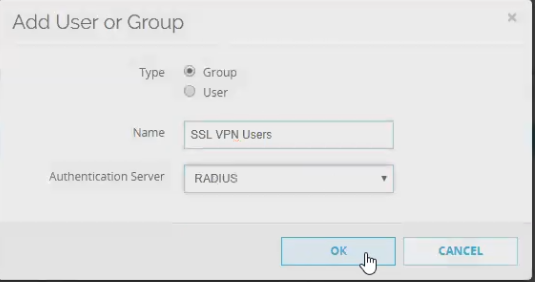

Watchguard Group Add
Watchguard Group Add

Assuming you're using AD or LDAP authentication presently:

  • Go to VPN -> Mobile VPN with SSL
  • Click on the Authentication tab
  • Click the "Configure" button over Save
  • Select the Authentication Server line representing your existing AD/LDAP configuration
  • Click "Remove"
  • Select RADIUS from the dropdown
  • Click "Add"
  • Save
  • Click the Authentication tab
  • Remove the existing line referring to your group and AD/LDAP server
  • Click "Add"
  • Add a group of name "SSL VPN Users" (exact value can be whatever you want but must match the Filter-ID we set in NPS later!)
  • Change Authentication Server dropdown to RADIUS
  • Click OK
  • Save
Next Steps:
