NOTE: There is a newer version of this article available in the AuthLite 2.5 Documentation. Click here to view it.

Watchguard RADIUS settings

Watchguard Authentication Servers
Watchguard Authentication Servers
Watchguard RADIUS settings
Watchguard RADIUS settings

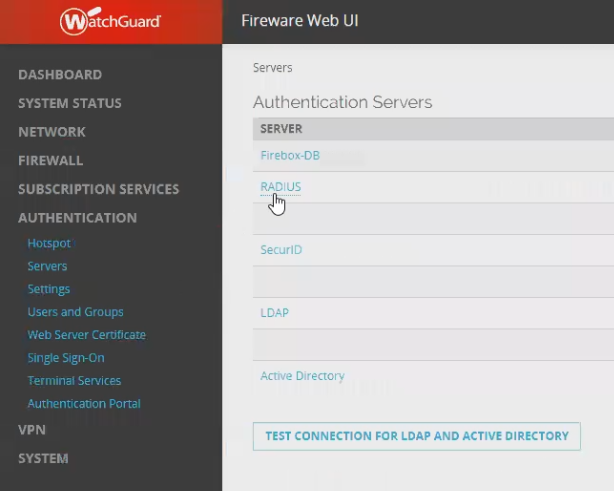

  • Go to Authentication -> Servers

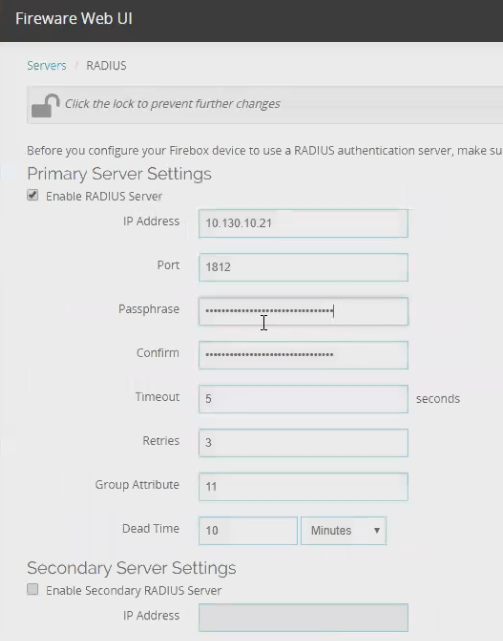

  • Select RADIUS
  • Enter the IP address of your NPS server (member server or DC where NPS is installeD)
  • For "Passphrase" enter a long randomly generated shared secret
  • Set up the settings for second NPS server if you wish to have redundancy
  • Save
Next Steps:
